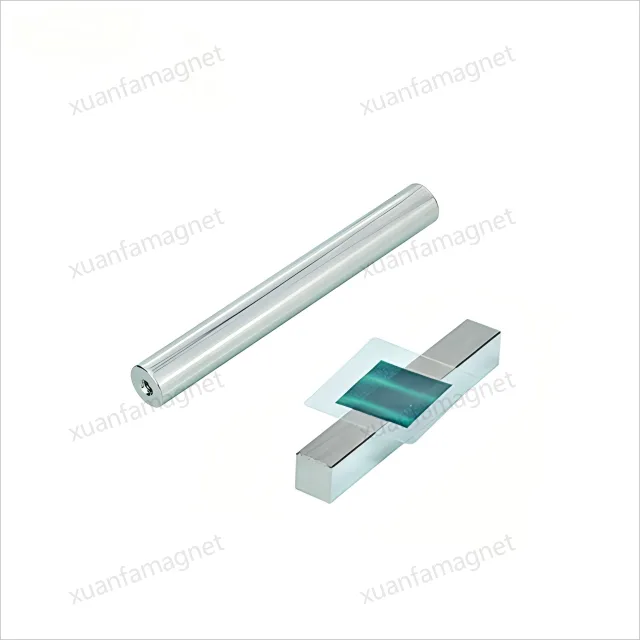

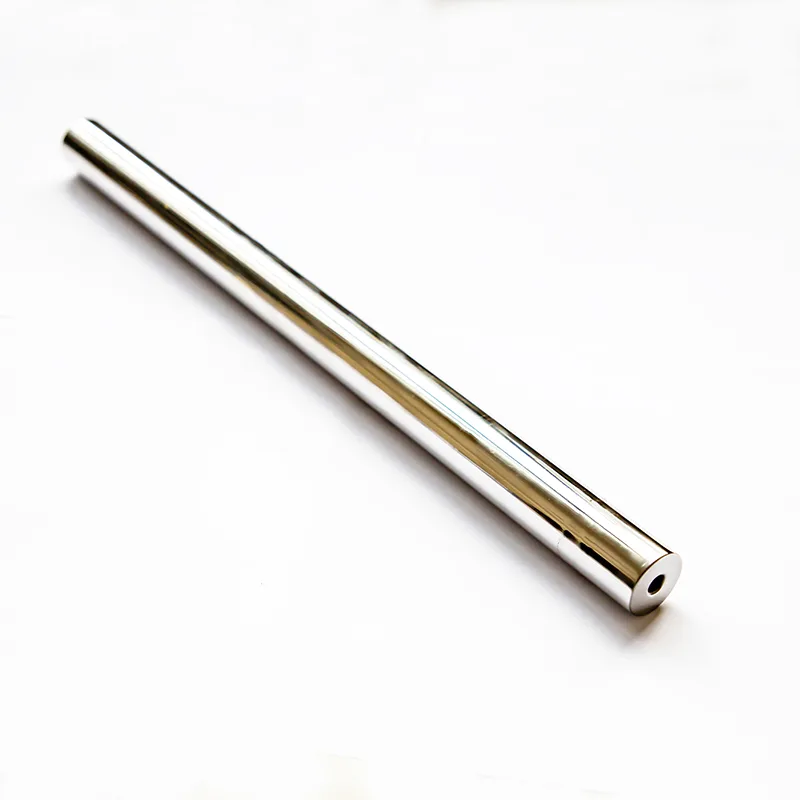

Magnetic Rod
¥0.00
XUANFA Magnetic Bars are industry-leading in magnetic intensity and dimensional accuracy.
Encased in welded-sealed stainless steel tubes (SS304 or SS316L), the optimized wall thickness maximizes magnetic efficiency.
Core Features:
High-strength rare-earth magnets (Neodymium Iron Boron / NdFeB)
Customizable designs to meet client specifications
Captures fine ferrous contaminants from powders, slurries, and bulk materials
Enhances product purity, safeguards downstream equipment
Applications:
Standalone installation at feed/discharge points or within pipelines
Integrated into systems:
• Magnetic Grates
• Magnetic Drawers
• Liquid Traps
• Magnetic Drum Separators
Description

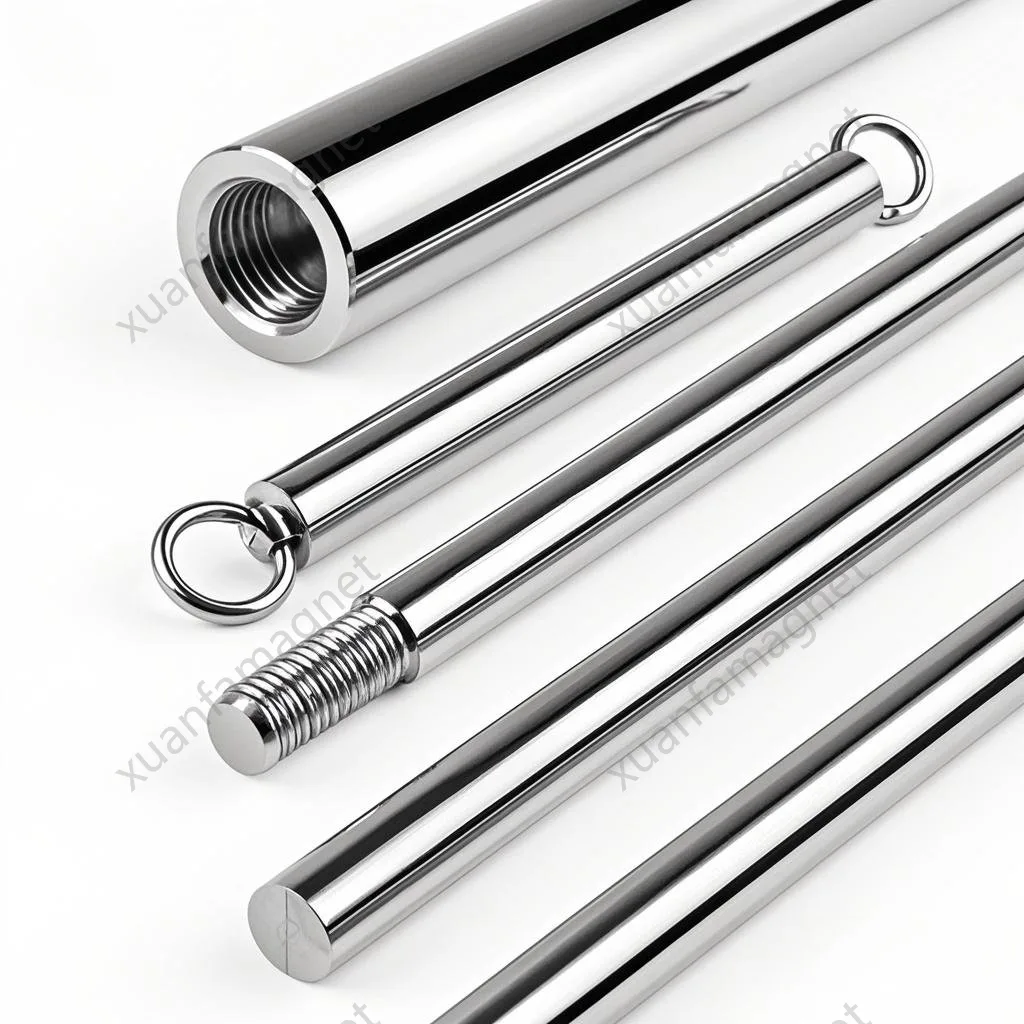

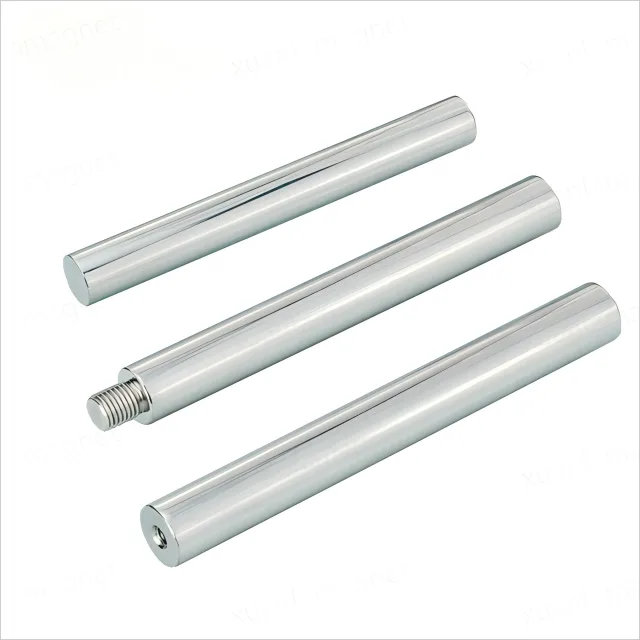

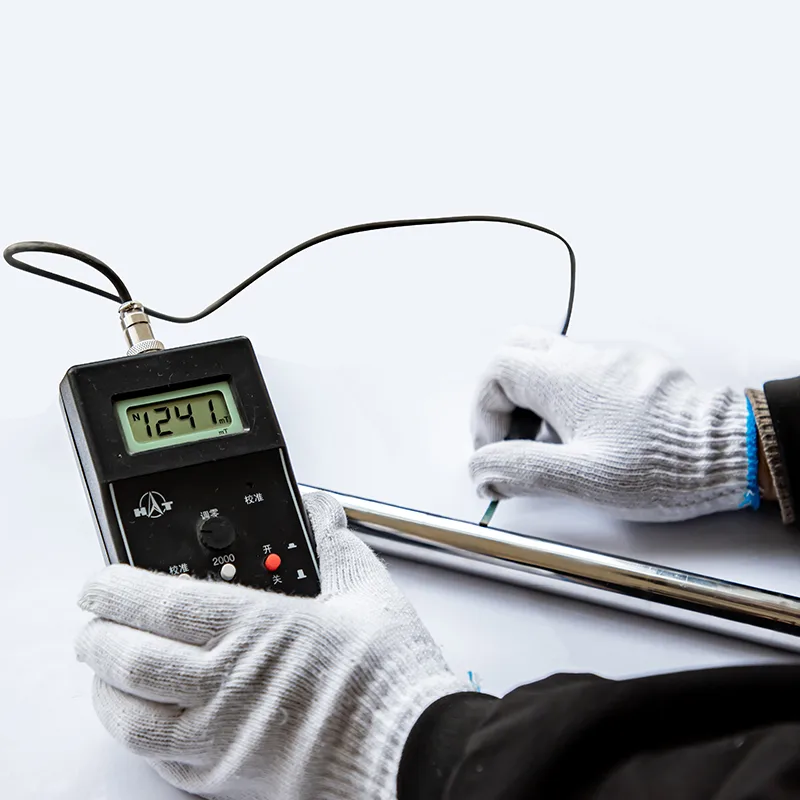

| Model | Surface Gauss | Surface Material | Diameter | Length | Ends Style | Working Temperature |
|---|---|---|---|---|---|---|
| XF-16 | 2000—10000 Gs | SUS304 SUS316 | D16MM | 100-1500MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-19 | 2000—11000 Gs | SUS304 SUS316 | D19MM | 100-1500MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-20 | 2000—12000 Gs | SUS304 SUS316 | D20MM | 100-1500MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-22 | 2000—12000 Gs | SUS304 SUS316 | D22MM | 100-1500MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-25 | 2000—14000 Gs | SUS304 SUS316 | D25MM | 100-1500MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-28 | 2000—13000 Gs | SUS304 SUS316 | D28MM | 100-1500MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-30 | 2000—13000 Gs | SUS304 SUS316 | D30MM | 100-2000MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-32 | 2000—14000 Gs | SUS304 SUS316 | D32MM | 100-2000MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-38 | 2000—14000 Gs | SUS304 SUS316 | D38MM | 100-2000MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
| XF-50 | 2000—15000 Gs | SUS304 SUS316 | D50.8MM | 100-2000MM | Flat, Inner or Outer Screw, or on request | < 300℃ |
